We design as per the specific needs & requirement of the clients, We apply latest production & quality management techniques, We ensure timely delivery of consignments, we quote reasonable prices to our valued clients. We provide excellent pre sale & after sale service back up to assist our clients.

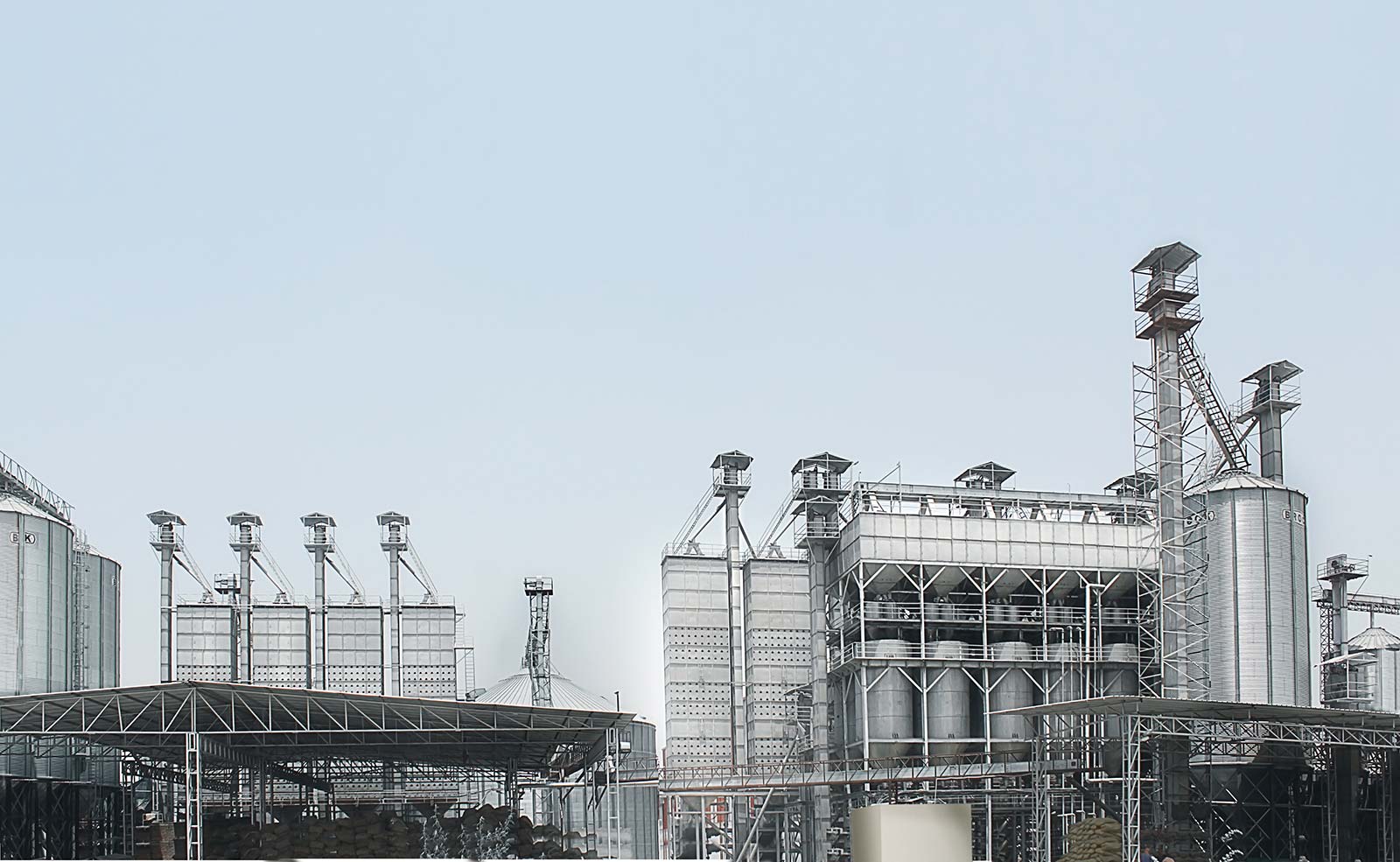

The complete rice milling solution from Punjab Fabricators have been instrumental in changing the face of the rice industry in India and its export growth. In the year 2001, Punjab Fabricators was established by Mr. Punjab Singh & Mr. Captain Singh with the view to incorporate latest design and modern technology in India and has been continuously making improvement and upgrading the technology on their own efforts.

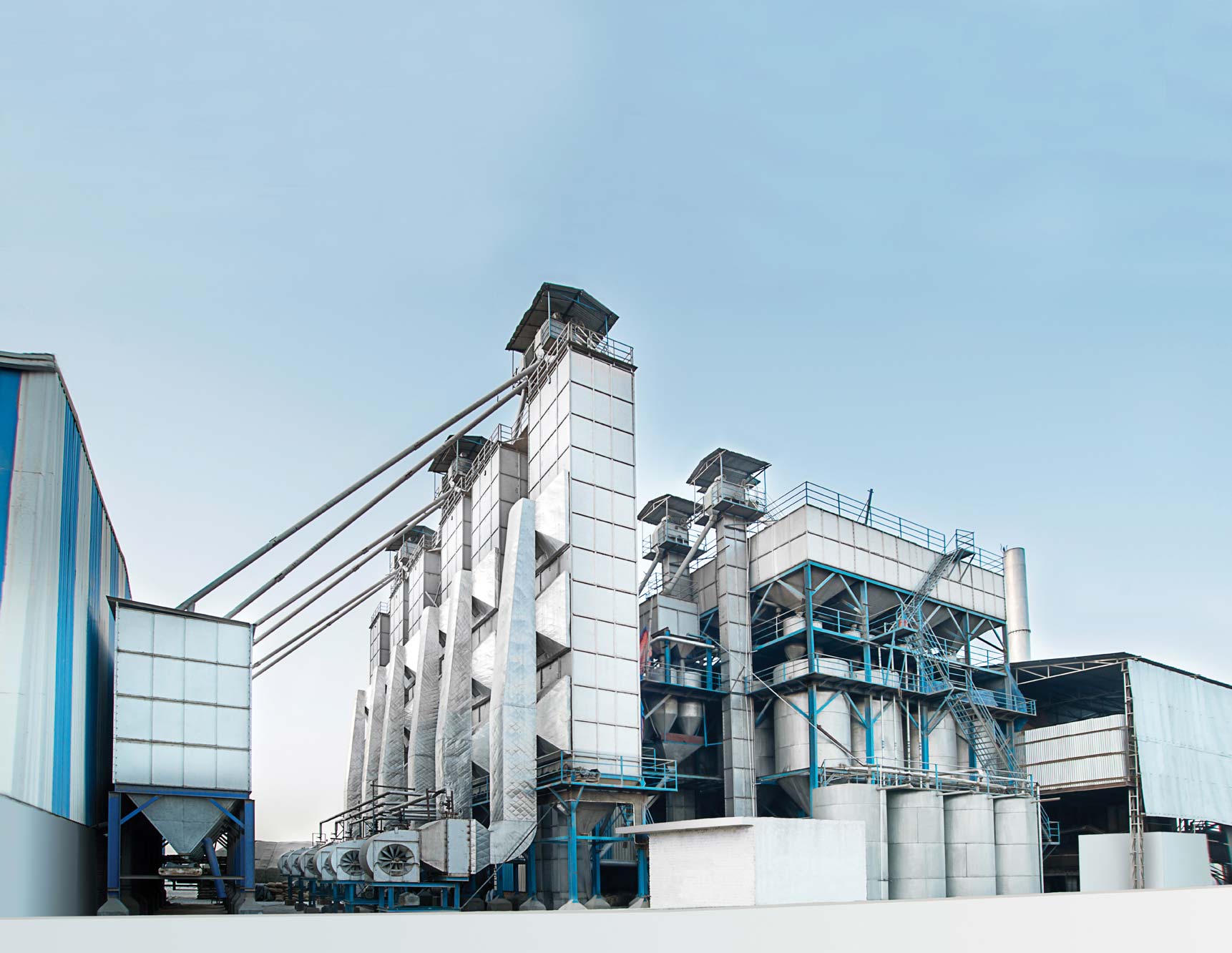

Many plants have been installed and set-up in the various states of India such as Haryana, Punjab, Uttar Pradesh, Rajasthan, Himachal Pradesh, Tamilnadu etc. prepared by our expert engineers using modern techniques. we have also installed our plants to in many countries such as Iran , Bangladesh, Dubai, Nepal, Nigeria , South Korea etc. and we are looking forward to expand our horizons to the other countries of the world.

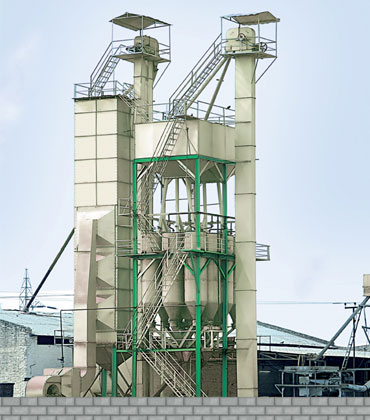

Capacity 18,20,24,32 tonnes per batch (one drier)
Paddy Drier Plants are prepare here for basmati and non-basmati rice
Capacity 18,24 32 tonnes

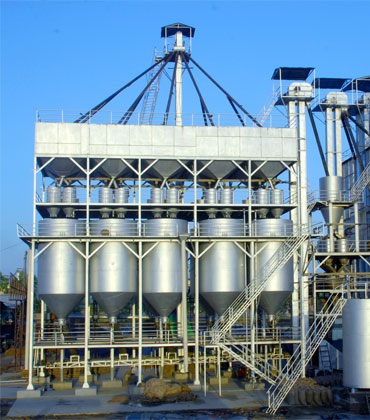

Paddy parboiling Plants are prepare here for Basmati and non basmati rice which is also useful in making the golden sela and white Sela
Paddy Parboiling Plants System, Single stage parboil processing, Raw Paddy and soaked paddy (kachi -pakki) system for basmati paddy, Pressure parboiling for normal paddy, Parboiling for normal fine and superfine paddy without pressure, Less man power & electricity power consumption
Capacity 18 to 24 tonnes per batch (one drier)
Paddy Steam Plant System
Useful in manufacturing of single steam rice which is prepared by mini boiler.
useful in drying of raw paddy which is dried by steam heat exchanger or direct husk power furnace or husk fire tube heat exchanger.

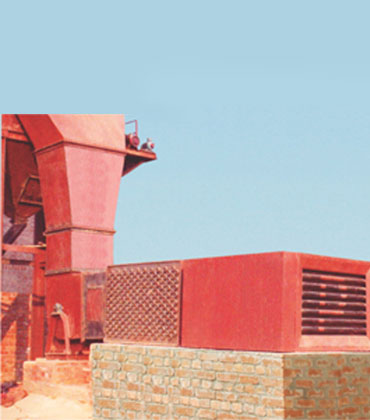

The paddy drier which is operated on husk fired furnace with special pre-heater for drying the parboiling paddy.
The flue gases pass through the pre-heater where its energy is utilize to pre heat the air. its working is similar to steam heat exchanger.
there is no scope for direct flue gases & paddy is dried by hot air , heated up after passing through husk fired heater.

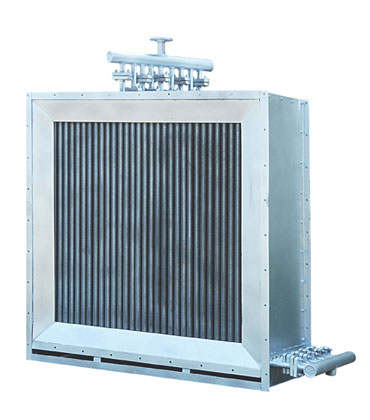

we manufacture the steam heat exchanger in different capacity (from 18 tonnes to 24 tonnes paddy) to be dried in the drier on per day basis.
Very comfortable for cleaning all the tubes because of its folding system.
continuous spirally wound finned tube with crimped fins gives high efficiency than base tubes and more over it is wound with tension which gives 80% more efficiency. now a day crimped fins have gained more and more acceptance and popularity in rice industries.
heat exchanger drier the paddy with (302 MS fin Tubes) different number of tubes in fixed type and split type mode in split type all rows can be dismantled and easily reassembled.

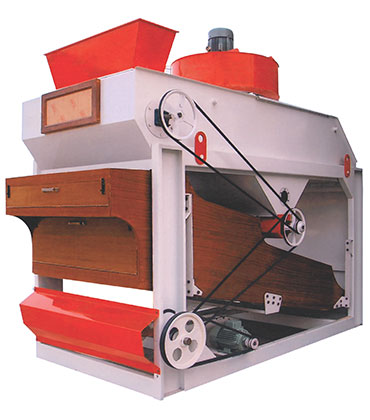

Capacity 5 to 15 tonnes per hour : size 8'x4'
Pre cleaner features a three sieve system, Sieve system with an individual sieve slope for optimum separation on each screen, an inlet feed roller to feed the entire working width of the machine.
It is fixed and of variable drive to suit specific requirement and driven by 7.5 HP motor

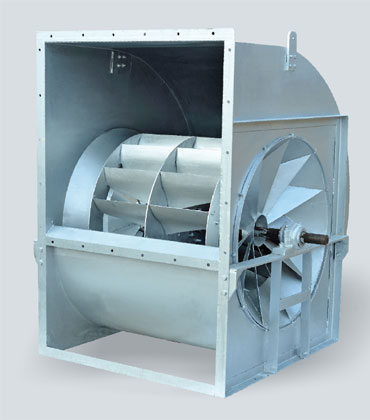

The paddy drier power efficient blower is designed with discharge area of 1472 sq. inch.
Double aluminum impeller baffles are provided for extra circulation of air to give high efficiency at very large range of capacity.
the blower impeller is dynamically balanced on precision balancer.
it is driven by 10HP motor vibration free operation & improved efficiency with minimum power consumption(20-25 % less)
